Creative Cylindrical LED Display Pillar LED Screen - LED Display Manufacturer
Product Overview

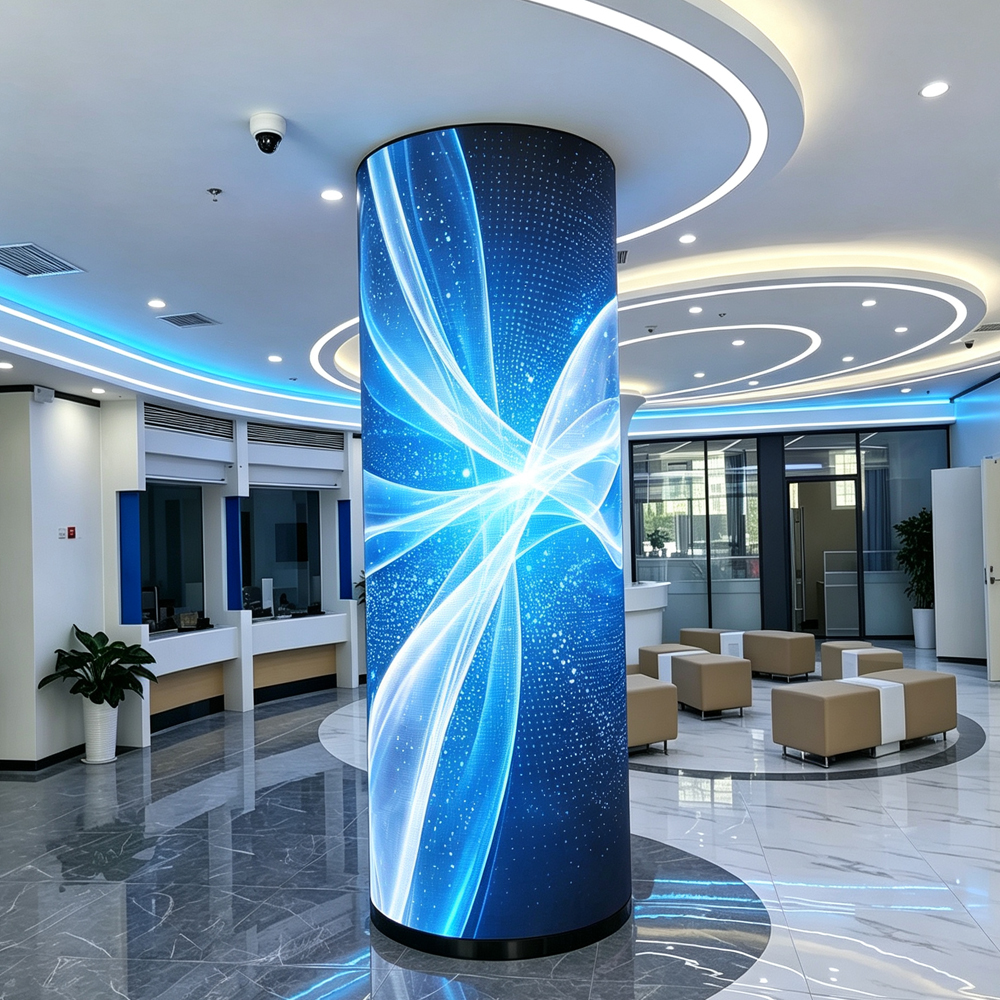

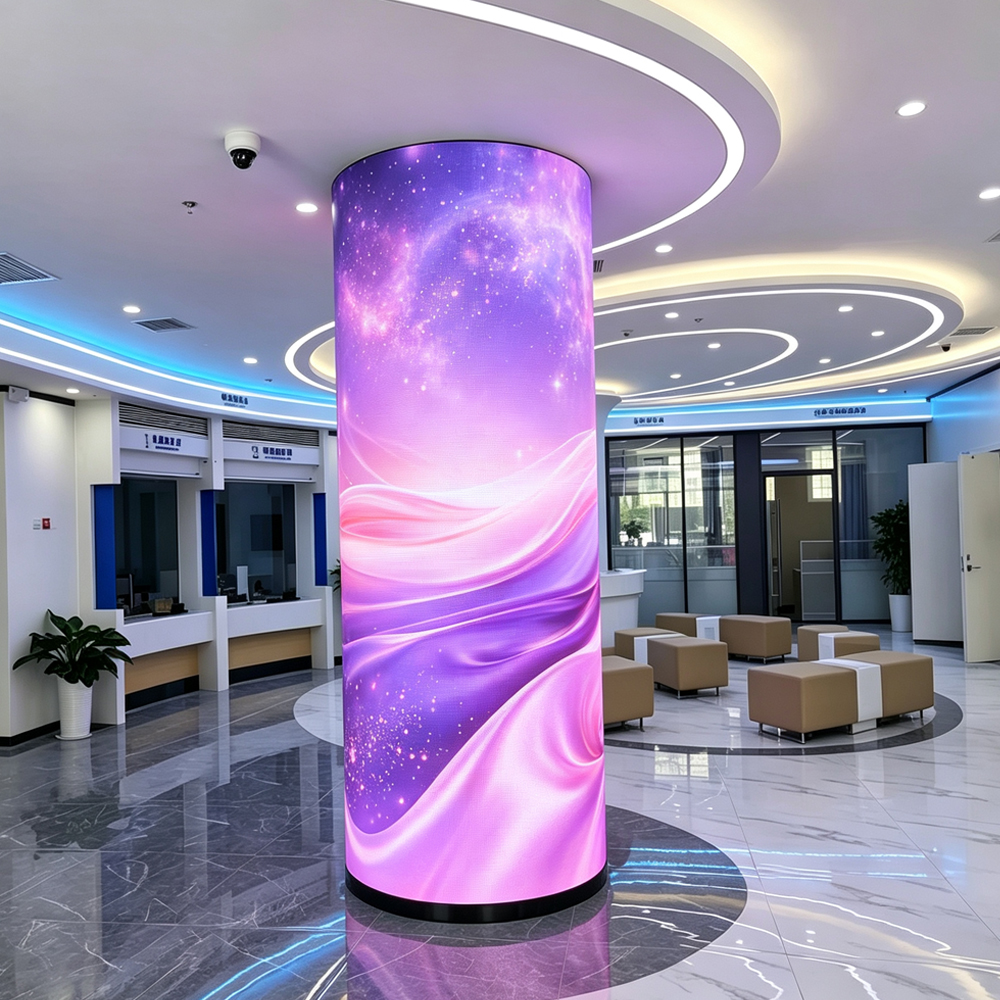

A cylindrical led display, also known as column LED screen, is a creative special‑shaped LED display designed for pillar and cylindrical installations. It is available in both indoor and outdoor versions to fit different operating environments.
cylindrical Indoor LED screens are widely deployed in exhibitions, hotels, shopping malls and other indoor venues. Outdoor cylindrical led displays work reliably for plazas, public parks, stadiums and other open‑air locations. We deliver complete cylindrical LED screen solutions with diverse pixel pitches and custom diameters. Our highly configurable custom solutions deliver high‑definition visuals, high contrast and broad color gamut to satisfy diverse project requirements.
| Product Parameters | ||
|
|
Pixel Pitch: | P1.5/P1.8/P2/ P2.5(customizable) |
| LED Type: | SMD 1515, SMD 2020 (depending on pixel pitch) | |
| Brightness: |
800–2000 nits (adjustable based on environment) |
|
| Module Size: | 240mm x 120mm, 320mm x 160mm (custom sizes available) | |
| Lifespan: | 100,000 hours (average) | |
|
Input voltage: |
AC110V ~ 240V | |
| Working Temperature: | -20°C to 60°C | |
| Control System: | Synchronous and Asynchronous Control (with Wi-Fi/4G support) | |
| Operating humidity: | 10% ~ 90% | |
| Customization Options: | Custom shapes (star,circles, arcs, triangles, hexagons, etc.) | |
| Installation: | Ceiling Mount, Wall Mount, Floor Mount (custom solutions) | |
| Source compatibility (with video processor) : |
DVI/VGA,Video(multiple modes),RGBHV,composite Video Single,S-VIDEO,YPbPr(HDTV) |
|
Product Features:
1.Flexible Curved Design
Constructed with soft bendable PCB boards, the modules can wrap around round, elliptical and irregular pillar structures.
Multiple Flexible Module Dimensions
Available module sizes: 250mm×250mm, 240×120mm, 256×128mm, 320×160mm.
2.Seamless Splicing Performance
Precise inter‑locking module connection eliminates dark lines and bright lines across the whole display surface.
3.Durable High‑Grade PCB Material
Special soft PCB maintains stable working performance even when formed into irregular curved profiles.
4.Convenient Front‑Service Maintenance
Front‑access design allows technicians to replace faulty modules rapidly without rear‑side operation.
5.360° All‑round Viewing
Consistent visual output from every angle, no viewing blind spots and zero image distortion.
6.Full OEM & ODM Customization
Wide selection of pixel pitches and module sizes to match different resolution standards and project‑specific demands.
7.Diverse Installation Solutions
Supports ceiling‑mounted, wall‑mounted and floor‑standing configurations. Please share your preferred installation method during inquiry.
Product Applications
Column and cylinder LED displays feature 360° panoramic viewing and seamless curved visuals, making them highly versatile for both commercial and public venues.
- Commercial Spaces
- Ideal for shopping malls, retail stores and brand exhibition halls. They transform ordinary structural pillars into eye‑catching digital advertising hubs to boost brand exposure and attract foot traffic.
- Public & Medical Venues
- Perfect for hospital lobbies and public service areas, delivering clear guidance information, public announcements and warm ambient visuals to optimize visitor experience.
- Cultural Exhibition Venues
- Widely adopted in museums and art galleries for immersive cultural display, dynamic exhibition introduction and artistic interactive visual installations.
- Transportation Hubs
- Suitable for subways, railway stations, bus terminals and airport terminals. Used for real‑time traffic information release, safety reminders and commercial advertising in high‑flow public areas.
Custom Cylinder LED Display Solutions
To build a tailor‑made cylinder LED display for your project, we adopt high‑performance flexible LED modules as the core components.

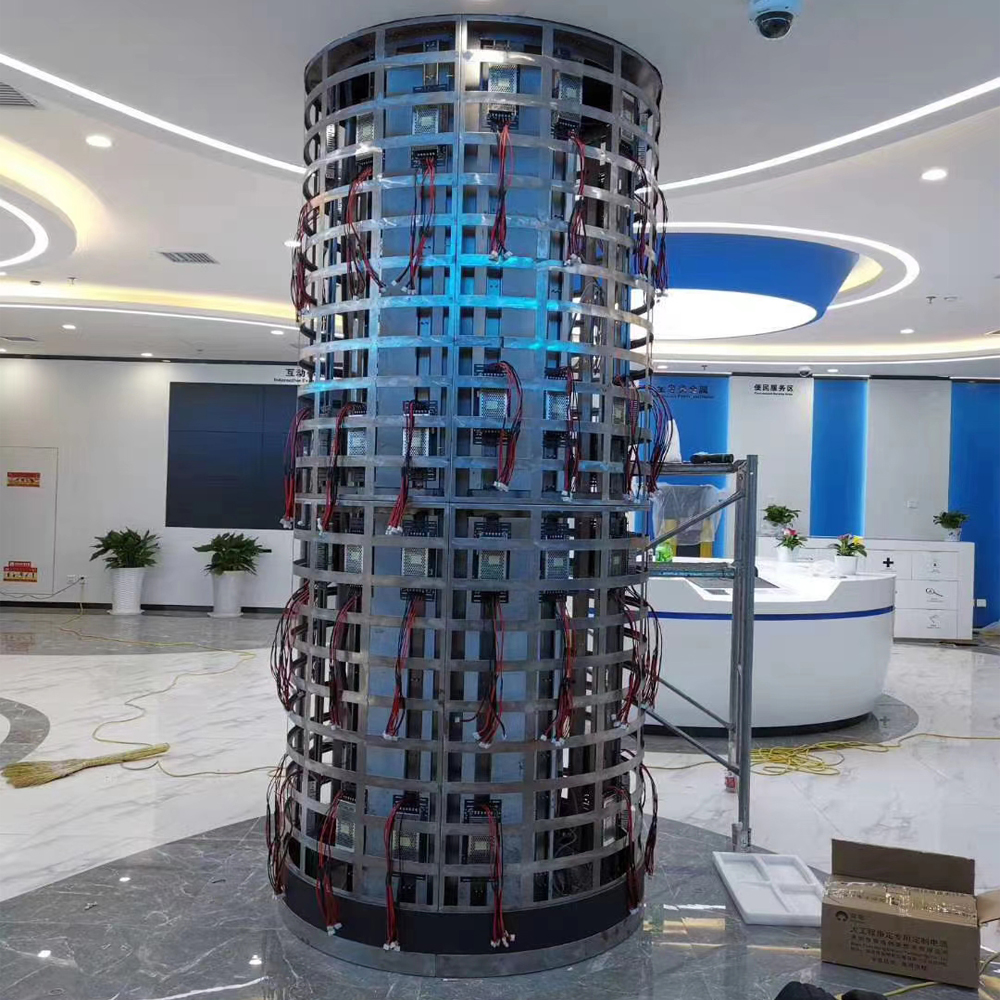

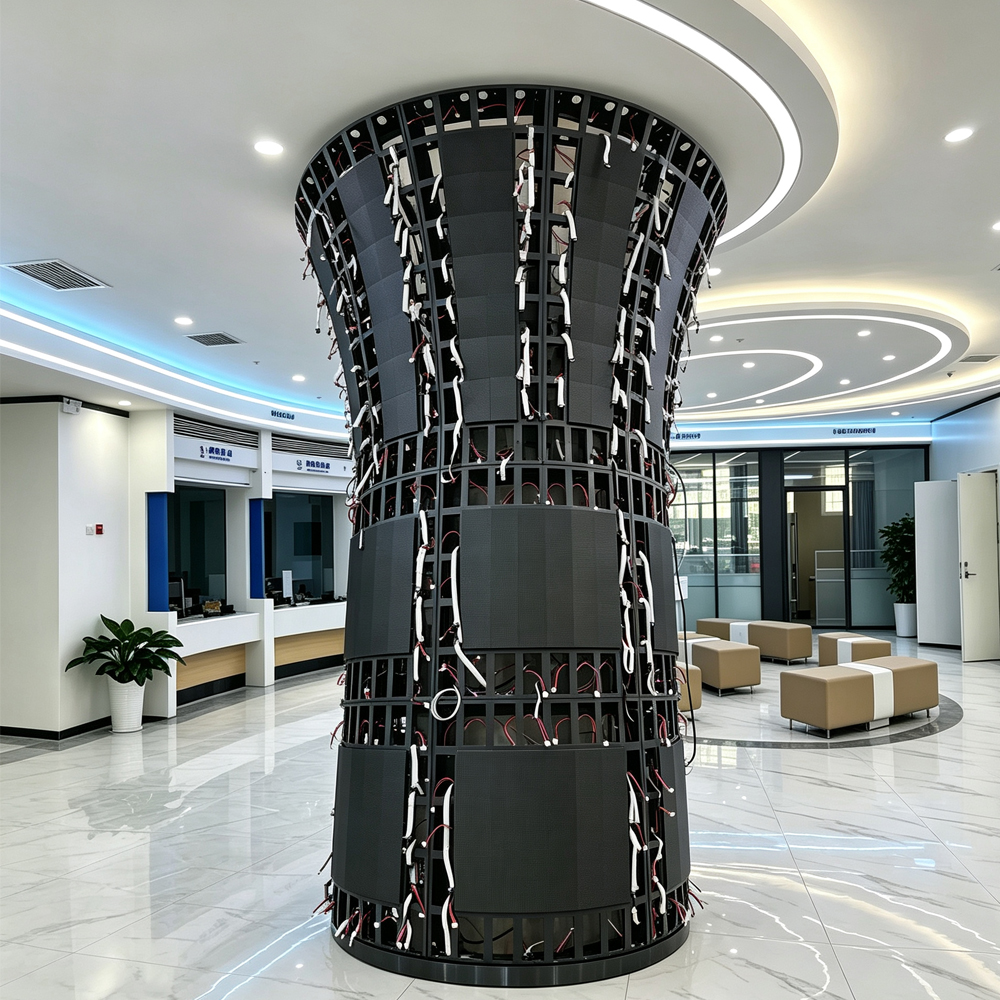

For fixed cylindrical LED installations, we first fabricate a supporting framework made of steel or aluminum alloy. Flexible soft LED modules are then mounted onto this custom‑engineered structure. Our flexible LED modules deliver outstanding bending performance, fitting closely along curved surfaces of the cylinder. The finished cylinder LED screen achieves excellent surface flatness for consistent visual output.
Customised according to your on‑site spatial dimensions, the cylinder LED screen supports playback of videos, images and text content. It serves as both an atmospheric enhancer and environmental decorative centerpiece for your venue.
Aglare Lighting provides end‑to‑end custom cylinder LED display services. Simply share key project information including dimensions, budget and viewing distance, and our team will deliver detailed technical proposals and formal quotations. If you plan a cylindrical or other creative LED screen project but are unsure where to begin, feel free to get in touch with Aglare Lighting.
FAQ:
Q: Can I customize the diameter and height of cylinder LED display?
A: Yes. Both diameter and total height are fully custom‑made. We will propose suitable module combinations according to your on‑site pillar size or expected installation dimension.
Q: What is the difference between indoor and outdoor cylinder LED screen?
A: Indoor models focus on high‑definition close‑distance viewing. Outdoor versions adopt waterproof‑rated modules with higher brightness to adapt to open‑air public environments.
Q: Does cylinder LED display support front‑side repair only?
A: Our standard cylinder LED screen adopts front‑service structure. Modules can be maintained and replaced from the front face, which is ideal for pillar‑wrapped installations with no rear operating space.
Q: What installation types are available for column LED display?
A: Ceiling‑hung, wall‑mounted and floor‑standing are supported. If you need to wrap around an existing building pillar, please provide the pillar size for our technical evaluation.
Q: Can cylinder LED screens play different content on different sides?
A: Yes. With customized control system configuration, you can run unified full‑surface content or independent video content for different curved sections.
-
