Custom Half-Circular LED Display - Creative LED Screen Manufacturer
Product Overview
This half‑circular LED display delivers a unique, innovative visual solution to produce captivating immersive visual effects, perfectly balancing decorative aesthetics and practical functionality. Available as custom semi‑circle and half‑moon LED panels with seamless splicing, it excels for creative stage builds and immersive exhibition installations.
Whether wall‑mounted, suspended, or integrated directly into architectural structures, this half‑circular LED screen brings a striking futuristic aesthetic to any venue. Get reliable factory‑direct pricing for your custom project from Aglare Lighting.
| Product Parameters | ||
|
|
Pixel Pitch: | P1.5/P1.8/P2/ P2.5(customizable) |
| LED Type: | SMD 1515, SMD 2020 (depending on pixel pitch) | |
| Brightness: |
800–2000 nits (adjustable based on environment) |
|
| Module Size: | 240mm x 120mm, 320mm x 160mm (custom sizes available) | |
| Lifespan: | 100,000 hours (average) | |
|
Input voltage: |
AC110V ~ 240V | |
| Working Temperature: | -20°C to 60°C | |
| Control System: | Synchronous and Asynchronous Control (with Wi-Fi/4G support) | |
| Operating humidity: | 10% ~ 90% | |
| Customization Options: | Custom shapes (half-circular,round,cubic, right‑angle, etc.) | |
| Installation: | Ceiling Mount, Wall Mount, Floor Mount (custom solutions) | |
| Source compatibility (with video processor) : |
DVI/VGA,Video(multiple modes),RGBHV,composite Video Single,S-VIDEO,YPbPr(HDTV) |
|
Product Features:
1.Innovative Modular System : Supports half‑circular, round, cubic, right‑angle and curved configurations with seamless panel connections for flawless visual output.
2.High‑Contrast Image Quality：Built with black SMD 3‑in‑1 LED lamps to deliver deep black levels alongside sharp, vivid imagery.
3.Customized Structure：Tailored to match your actual installation environment, flexibly adapting to diverse space geometries.
4.Arc Splicing Technology：High‑precision modules and structural components enable seamless arc splicing to guarantee complete, 5.distortion‑free picture performance.
6.Remote Content Management：Works via Wi‑Fi and Ethernet. Remotely edit, adjust and update playback content anytime, no on‑site operation required.
7.Multiple Installation Solutions：Compatible with suspension, fixed wall‑mount and mobile setups. Kindly advise your preferred installation method upon order placement.
8.OEM & ODM Customization：Custom‑engineered solutions for special dimensions, appearances and functional requirements to fit your unique project specifications.
Product Application :
Aglare’s half-circular LED display delivers distinctive visual performance that redefines how brands present digital content. Merging modern‑day aesthetics with solid functional performance, this eye‑catching cutting‑edge screen creates smooth, immersive viewing experiences from multiple angles.
Well‑suited for exhibition halls, shopping malls, museums, entertainment venues, corporate showrooms, hotel & commercial lobbies, as well as live events and creative installation spaces. Its unique semi‑circular profile guarantees clear, distortion‑free visuals for audiences across wide viewing zones, making it a standout architectural‑grade digital display solution.
Two Half‑Circular LED Display Versions
We offer two distinct construction versions for half‑circular LED displays: framed and frameless, each with unique structural characteristics.

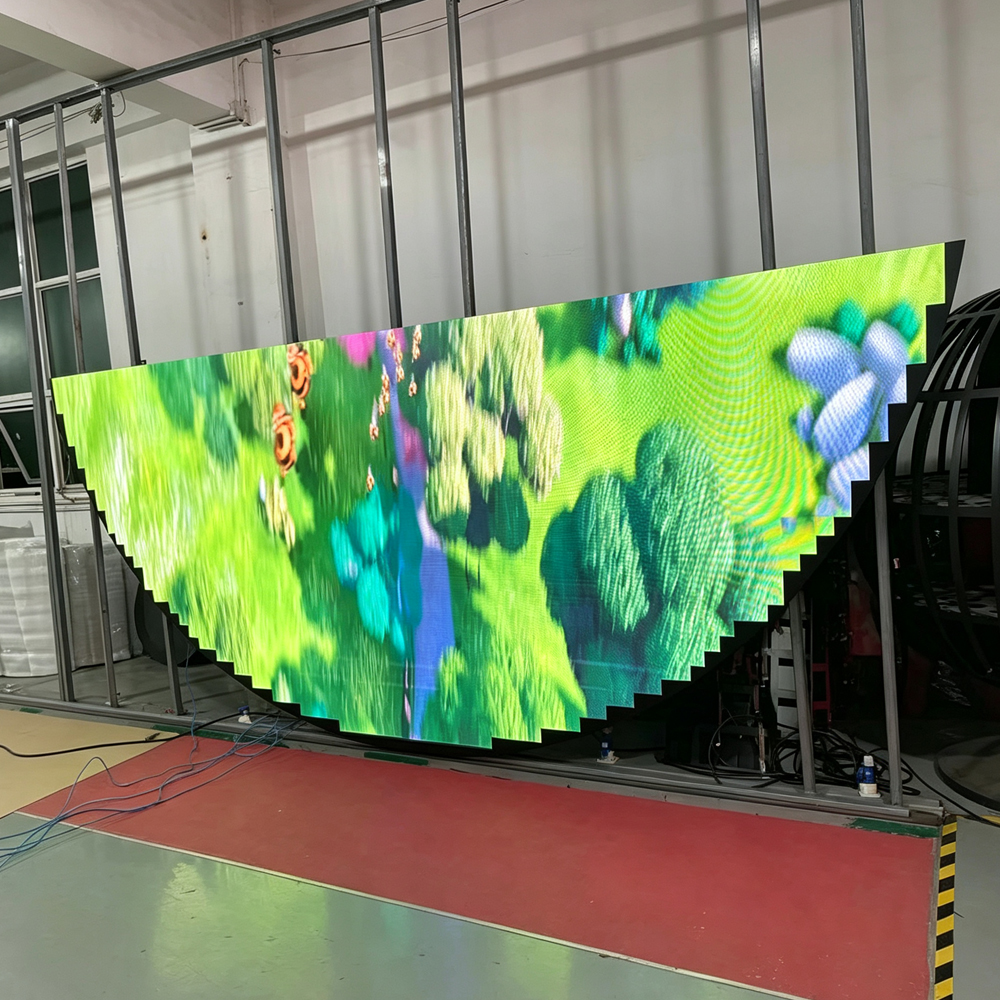

The frameless model adopts triangular‑style segmented modules with rounded edges. It delivers a clean, border‑free curved appearance for premium‑grade visual presentation, ideal for high‑end exhibition and architectural projects.

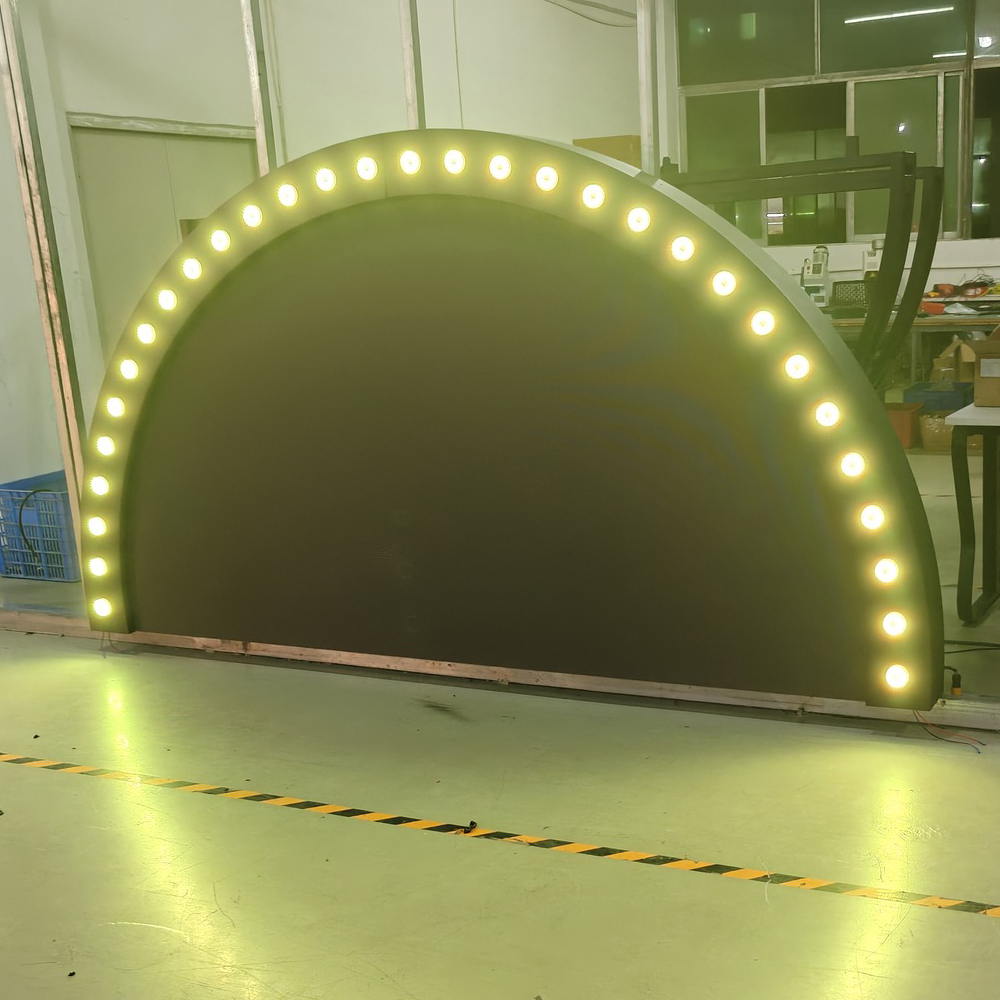

The framed model is built with standard square LED segments. An outer frame covers the raw module edges to achieve the half‑circular outline. Thanks to standard square modules, this framed solution is more cost‑effective for budget‑conscious projects.
|
With frame edge cover
 |
Without frame edge cover
 |
FAQ:
Q1: Can the half‑circular LED display be adjusted to different arc radii?
A: Yes. Our half‑circular LED panels support custom‑made arc radii according to your site conditions. We can adjust curvature to fit wall contours, stage backdrops or architectural embedding projects.
Q2: Is the half‑circular LED screen available for outdoor use?
A: Both indoor and outdoor versions are optional. Outdoor models adopt waterproof modules and protective cabinet structures to resist rain and dust. Please specify indoor or outdoor requirement when sending your inquiry.
Q3: What installation options do you offer for half‑circular LED displays?
A: We support suspended hanging, wall‑mounted fixing and mobile stand installation. Tell us your venue condition in advance, and we will provide matching structural drawings for your project.
Q4: How do I update content on the half‑circular LED display?
A: It supports Wi‑Fi and Ethernet connection. You can remotely edit and update videos, images and text content without on‑site access. Local offline playback is also available.
Q5: What is the typical lead‑time for a custom half‑circular LED screen order?
A: Standard production lead time is around 30 working days after deposit receipt. Lead time may vary based on special size, structure and order quantity. Contact our team for an accurate schedule.
Choose Aglare Lighting For Your Exclusive Custom LED Solution
Partner with Aglare Lighting, your trusted LED screen manufacturer, for your one‑of‑a‑kind LED display project.
Specializing in custom‑shaped LED displays, we bring solid R‑D expertise and rich real‑world project execution experience. We deliver efficient, dependable display solutions for clients across diverse industries.
Whether it is a mechanical structure screen, a customized special-shaped screen, or an LED display device suitable for outdoor, stage, commercial and other scenes, we can tailor it according to actual needs to ensure both effect and performance.
We not only provide products, but also provide overall solutions, from solution design to installation and commissioning, professional services throughout the process, to help your project become more outstanding.
Contact us now to start your LED customization journey
-
